Custom Silicone Applications & Case Studies

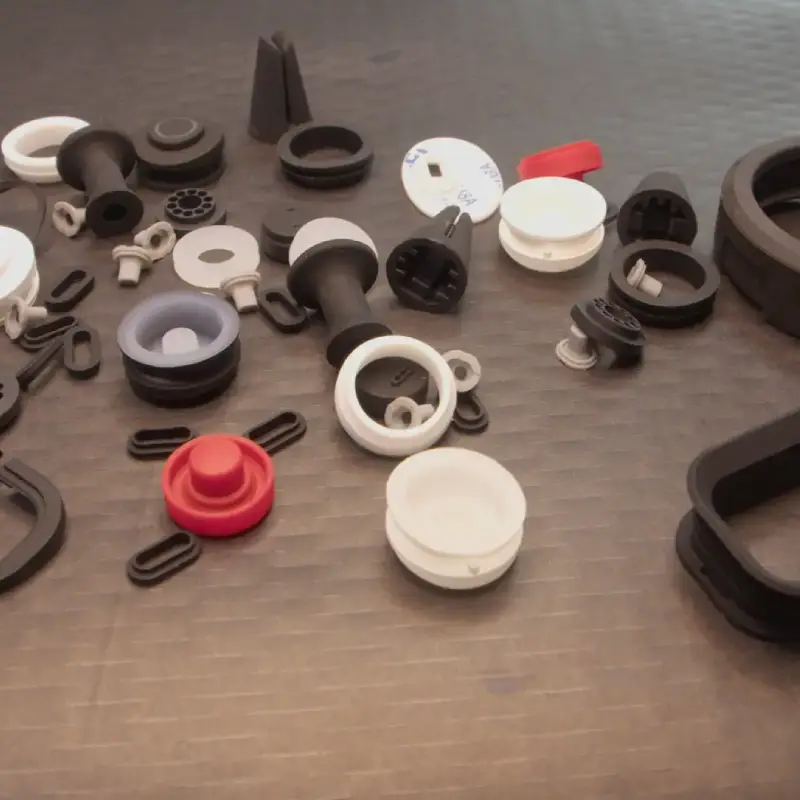

Seals, gaskets, washers, and stoppers for engines, compressors, and mechanical systems.

Solution

Compression molded silicone, custom formulated for chemical resistance and high-heat environments.

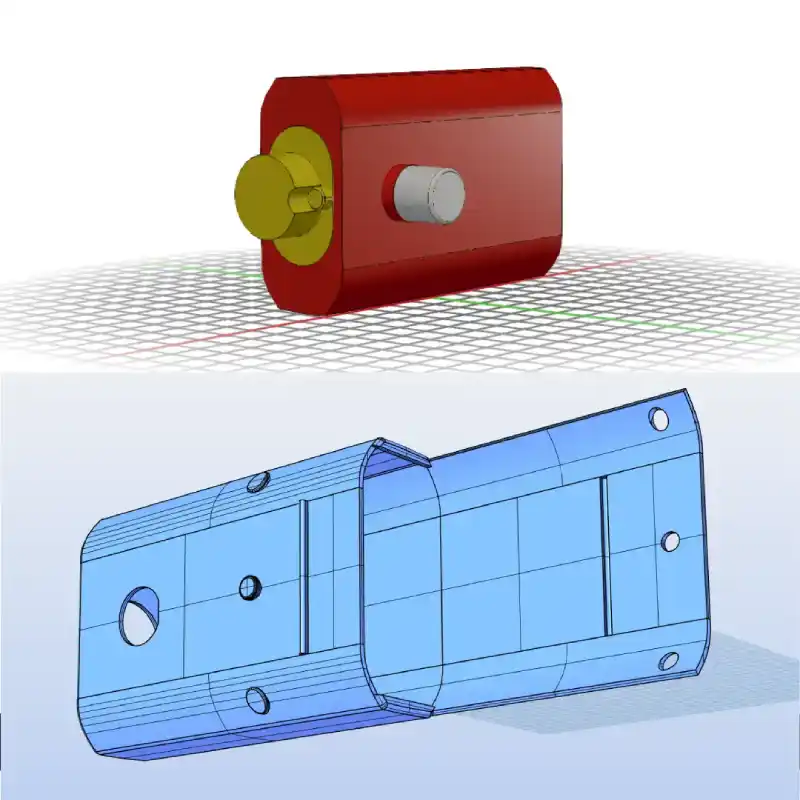

Enclosures resistant to oils, fuels, and harsh chemicals for heavy industrial environments.

Solution

Compression molded fluorosilicone compound, engineered for chemical degradation resistance.

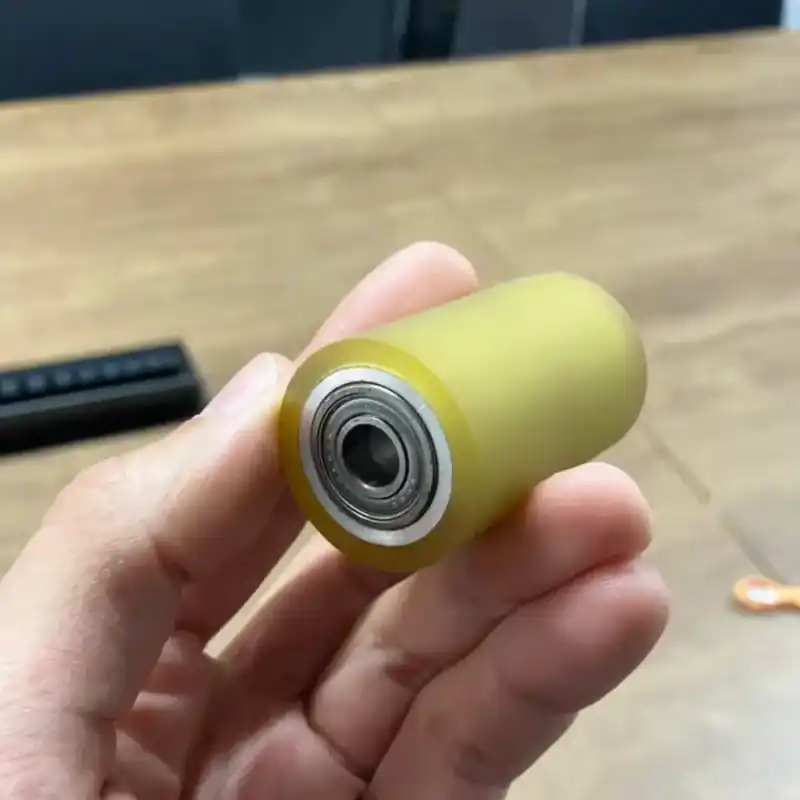

Gears, bearings, tires, pumps, and gaskets for heavy-duty machinery and harsh environments.

Solution

Compression molded silicone rubber, engineered for extreme pressure and high-temperature use.

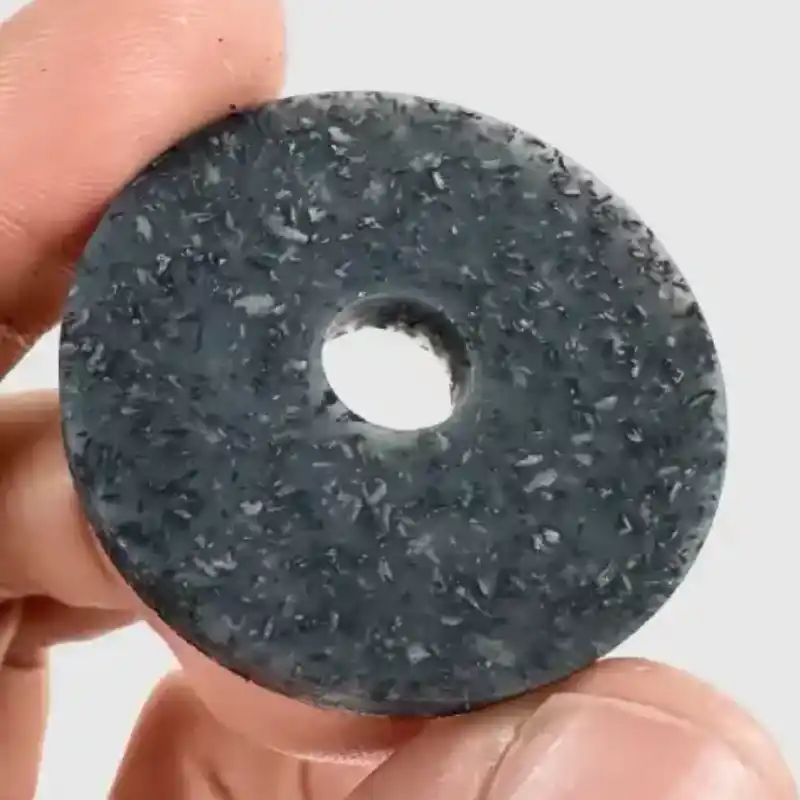

Custom washers compounded with PEEK and PTFE for high-load, high-creep environments.

Solution

Compression molded silicone + PEEK/PTFE compound, ±2mm tolerance, custom formulated per application.

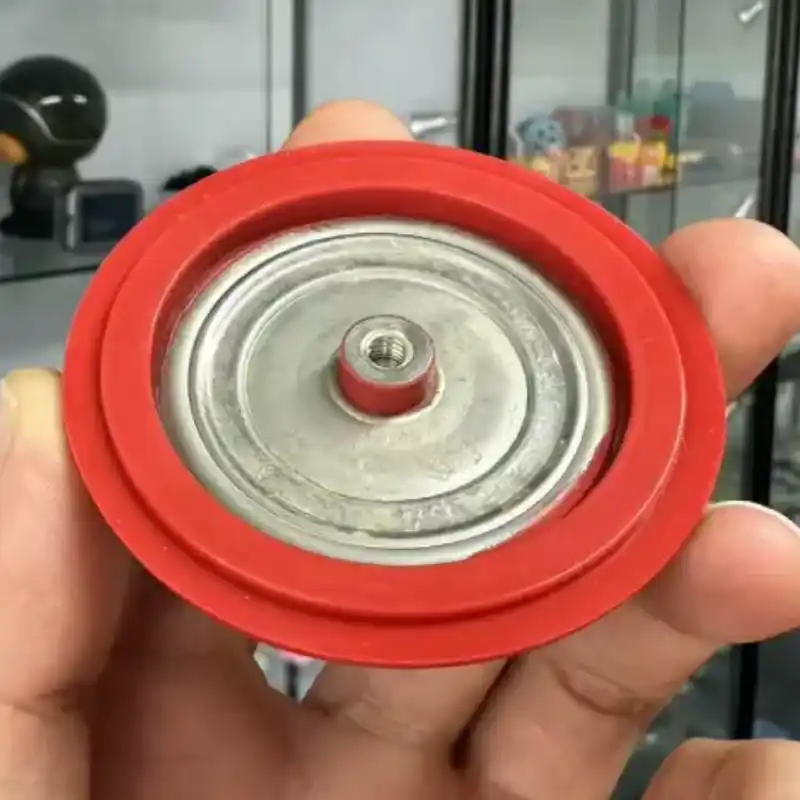

Custom flat, dished, rolling, and convoluted diaphragms for sealing and pressure isolation.

Solution

Overmolded onto stainless steel, ±0.2mm tolerance, Shore A 20–90, 15-day tooling lead time.

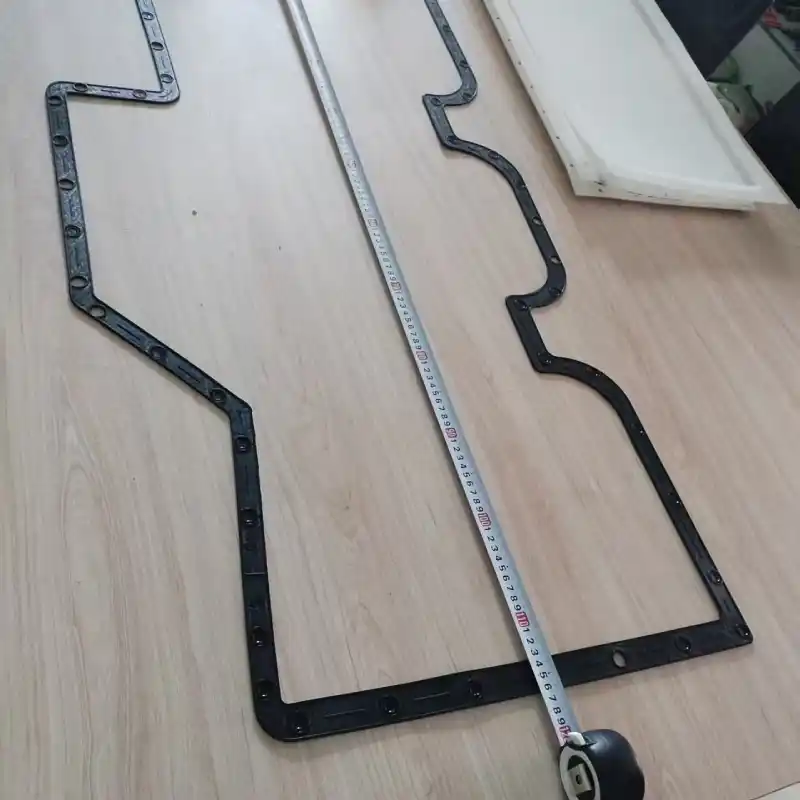

Oversized sealing flanges and housings up to 2100×1200×750mm for demanding environments.

Solution

Compression molded Silicone, EPDM, NBR, FKM, or FVMQ. DFM review included, 15–20 day tooling.

Grommets in custom sizes, shapes, and colors for sealing, insulation, and wire protection.

Solution

Compression molded silicone, ultrasonic tested, custom internal/external diameters to specification.

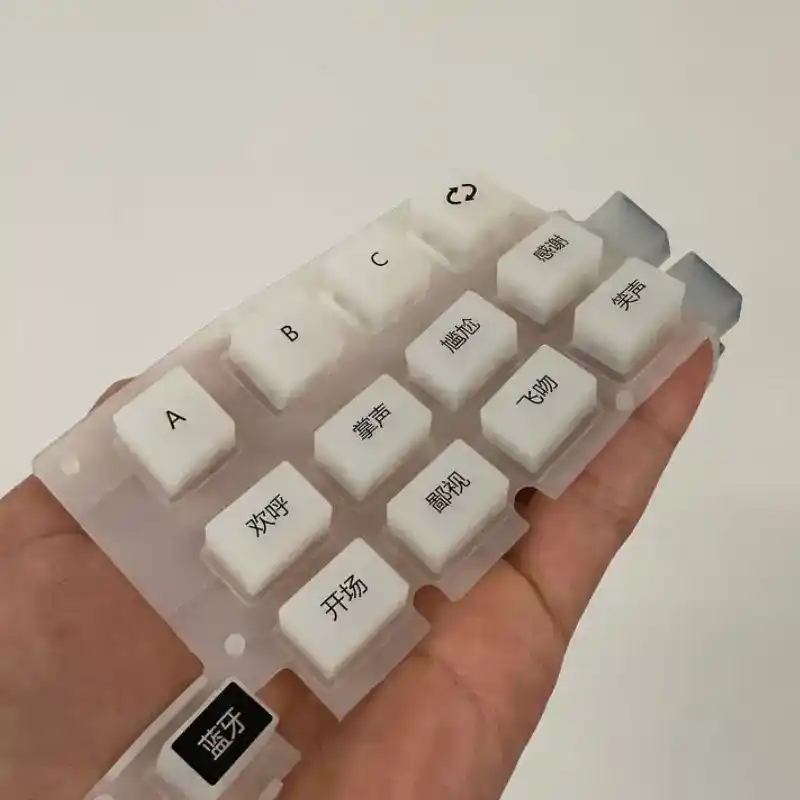

One-piece sealed keypad sheets for CNC machines, operator panels, and industrial controllers.

Solution

Compression molded silicone, carbon-pill contacts, perimeter sealing lip, Pantone matched, laser-etched legends.

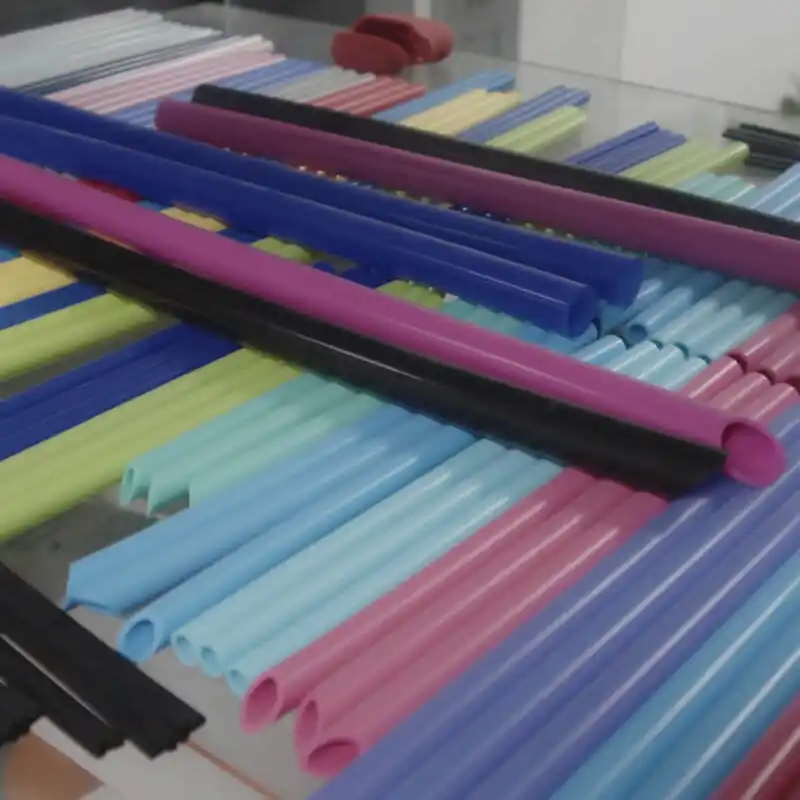

Custom tubing for chemical processing, food handling, and high-pressure fluid systems.

Solution

Extruded silicone, 5–200 PSI rated, -50°C to 250°C, fiberglass or wire reinforcement available.

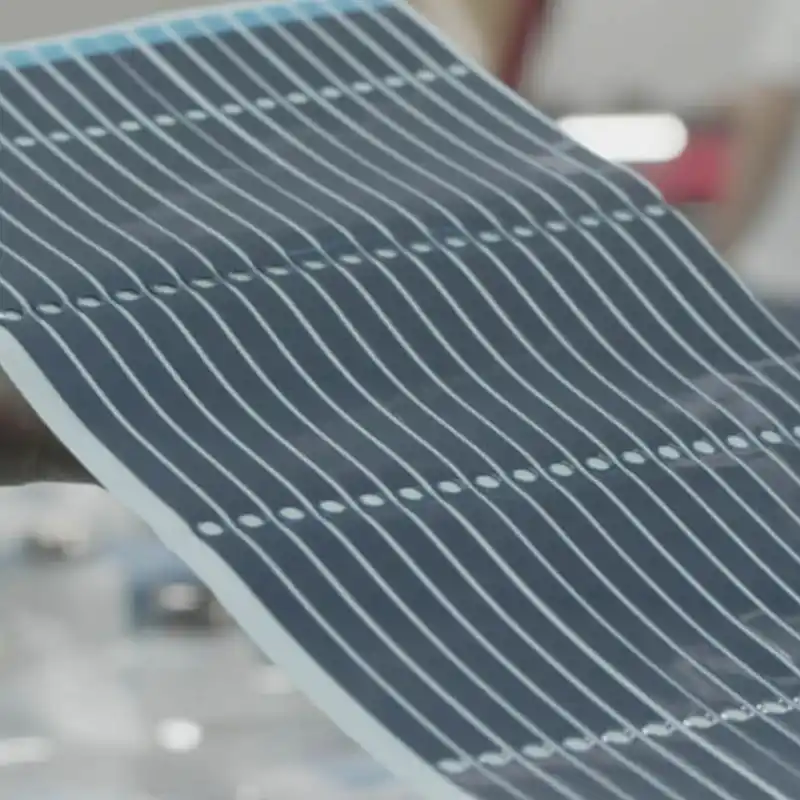

Silicone sheet stock for gaskets, liners, and sealing applications across multiple industries.

Solution

Custom thickness and medical or industrial grade silicone, tailored to client specifications.

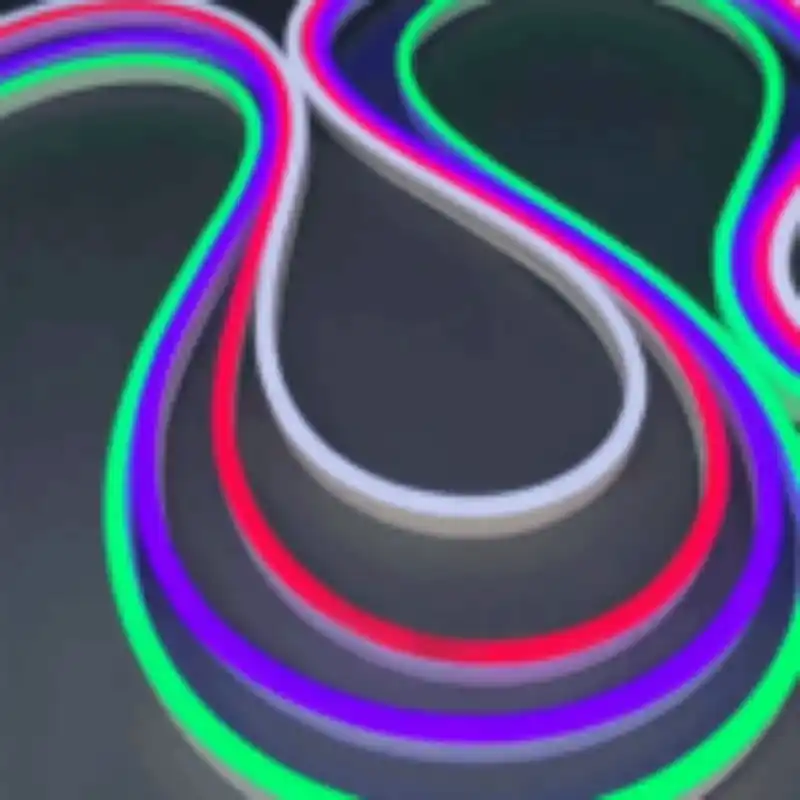

Photoluminescent silicone cord for glowing seals, illuminated tubing, and low-light indicators.

Solution

Custom extruded silicone with bioluminescent or photoluminescent formulation, cut to specification.

Custom straw tips for metal straws in brand colors for wholesalers and eco-friendly brands.

Solution

Compression molded food-grade silicone, custom size and color, dishwasher safe.

Flame-retardant and chemical-resistant sleeves for thermal management and vibration damping.

Solution

Compression molded or extruded, high-temp and chemical-resistant grades, surface coating available.

Custom ashtrays in any color, shape, or finish for retailers, wholesalers, and cannabis brands.

Solution

Compression molded platinum-cured silicone, ±0.3mm tolerance, Pantone matched, glow and thermochromic options.

Custom baking, candy, and candle molds in single or multi-cavity configurations for brands and retailers.

Solution

Compression molded platinum-cured food-grade silicone, heat resistant to 260°C, non-stick, dishwasher safe.

Custom beads in any shape, color, and finish for jewelry designers, retailers, and brands.

Solution

Compression molded food-grade silicone, glow and thermochromic options, prototype within 7 days.

Custom cases and sleeves for wearables, remotes, and industrial electronics housings.

Solution

Compression molded or LSR, UL94 V0 flame resistant, RoHS compliant, ±0.2mm tolerance, no MOQ.

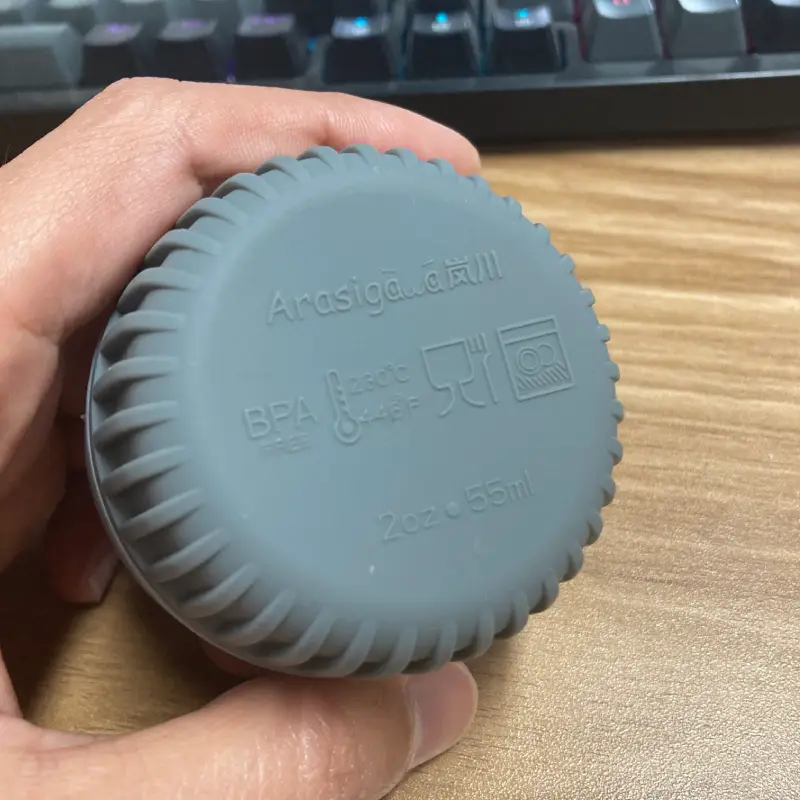

Custom silicone boxes and round containers for beauty, skincare, and lifestyle brands.

Solution

Platinum-cured food-grade silicone, FDA/LFGB compliant, Pantone matched, 15-day mold lead time.

Sterile, biocompatible gaskets for heat exchange systems in microbiology and lab environments.

Solution

Compression molded platinum-cured silicone, chemical and sterilization resistant, custom to your sketch.

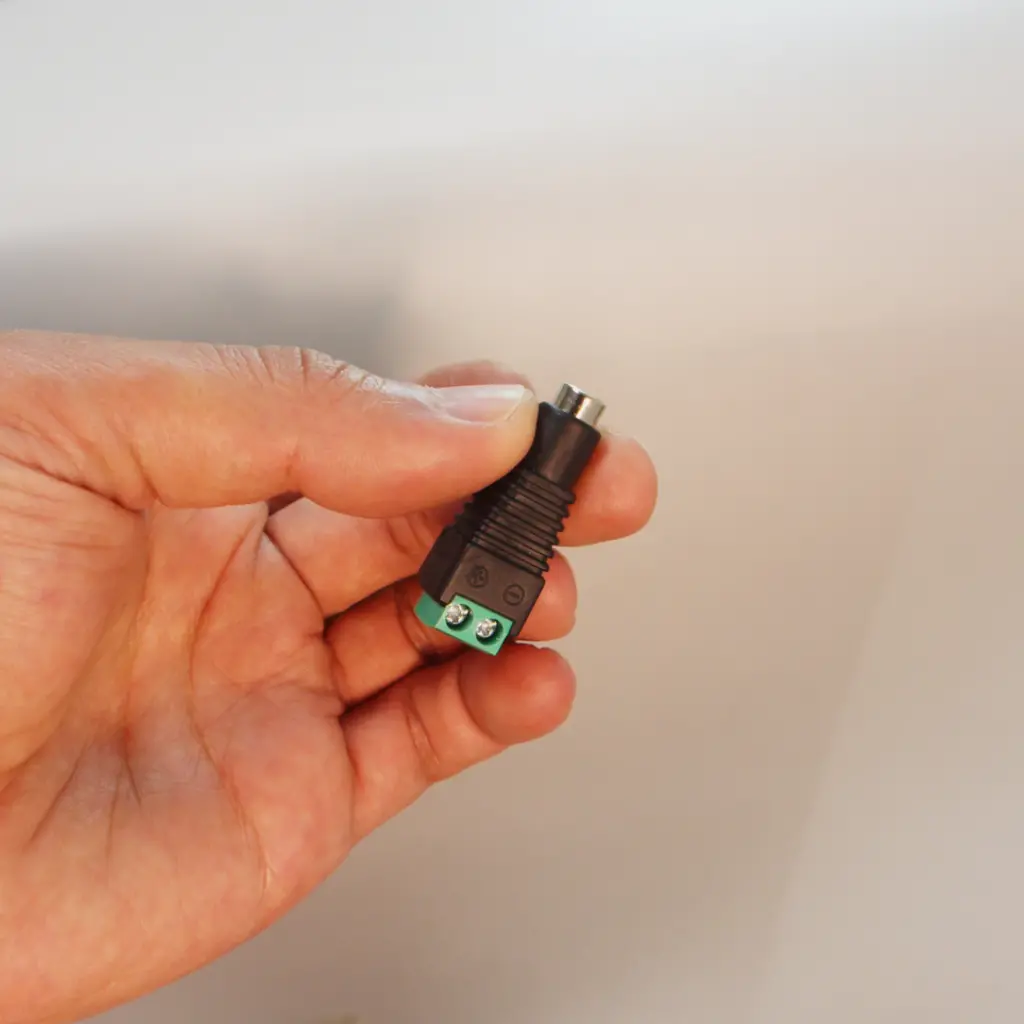

Silicone overmolded onto DC barrel connector body and cable exit for waterproofing and strain relief.

Solution

Compression overmolded silicone. Shutoff geometry at cable exit and edge profile designed to prevent peel initiation. Tested: leak test, pull test, flex cycling.

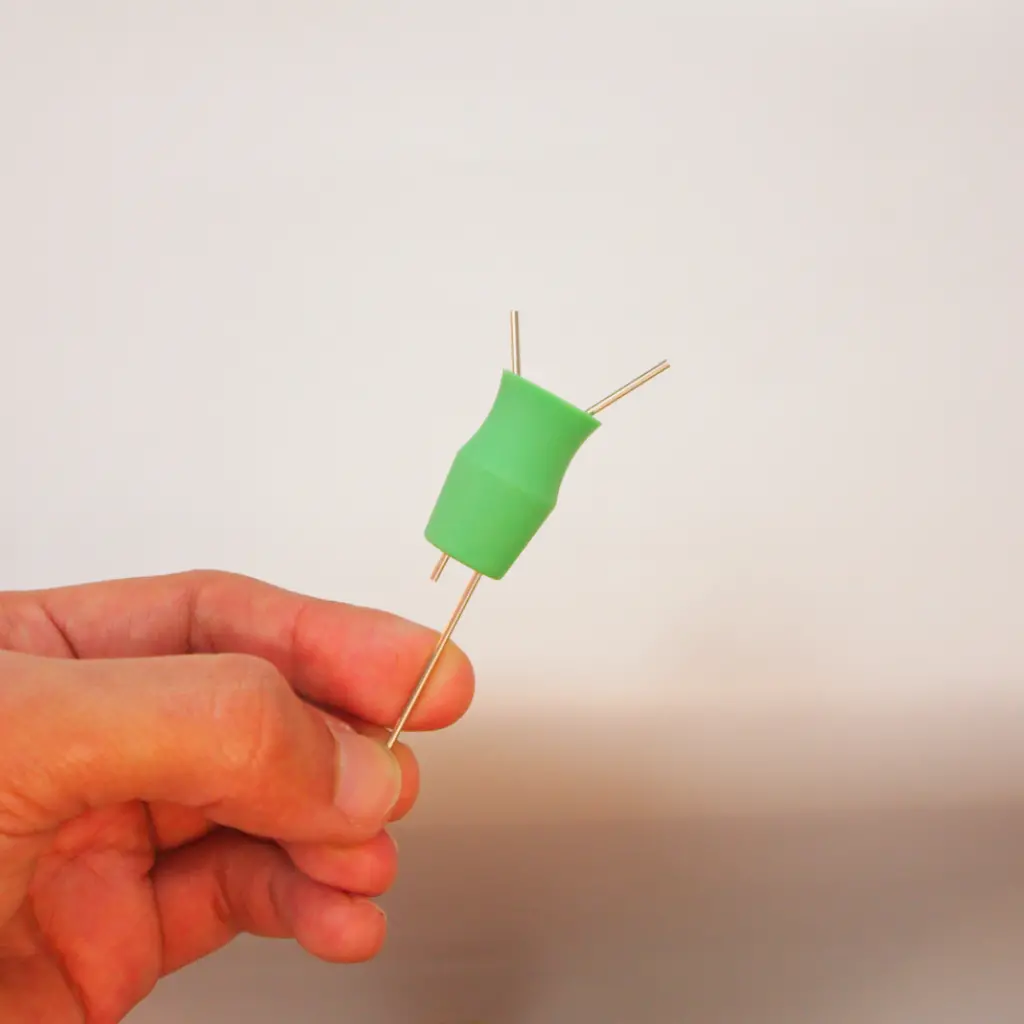

Silicone stopper overmolded onto a stainless steel needle insert for lab equipment sealing under repeated puncture load.

Solution

Compression molded silicone, mechanical retention features in mold cavity. Tested: insertion/withdrawal cycles, dimensional checks, leak resistance.

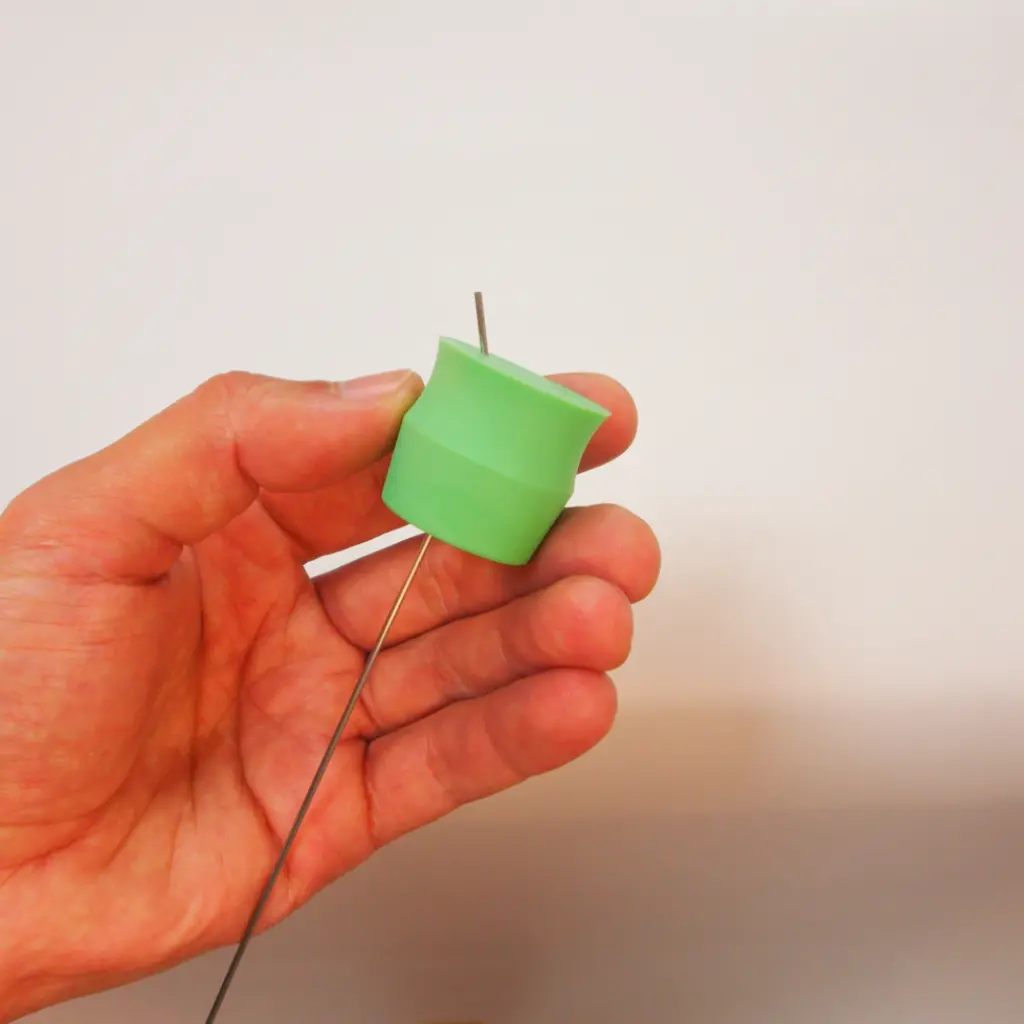

Silicone stopper overmolded onto multiple stainless needle inserts for multi-port lab applications.

Solution

Compression molded silicone, individual retention geometry per insert. Needle position repeatability and insert spacing confirmed in DFM before tooling.

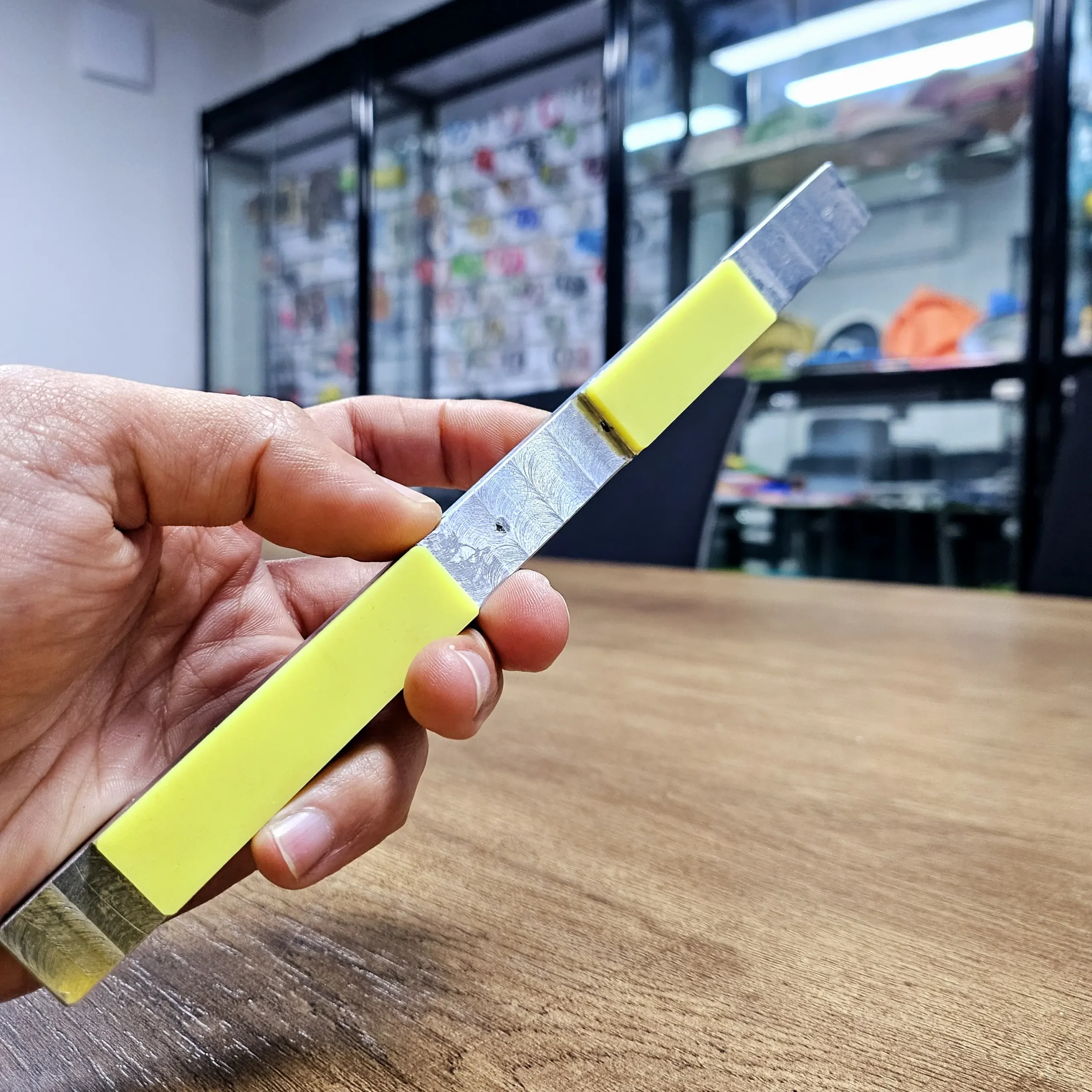

Silicone end caps overmolded onto aluminium linear extrusion for edge protection, vibration damping, and grip.

Solution

Compression overmolded silicone. Tolerance stack-up and corner retention geometry confirmed in DFM. Tested: fit check, pull-off resistance, thermal cycling.

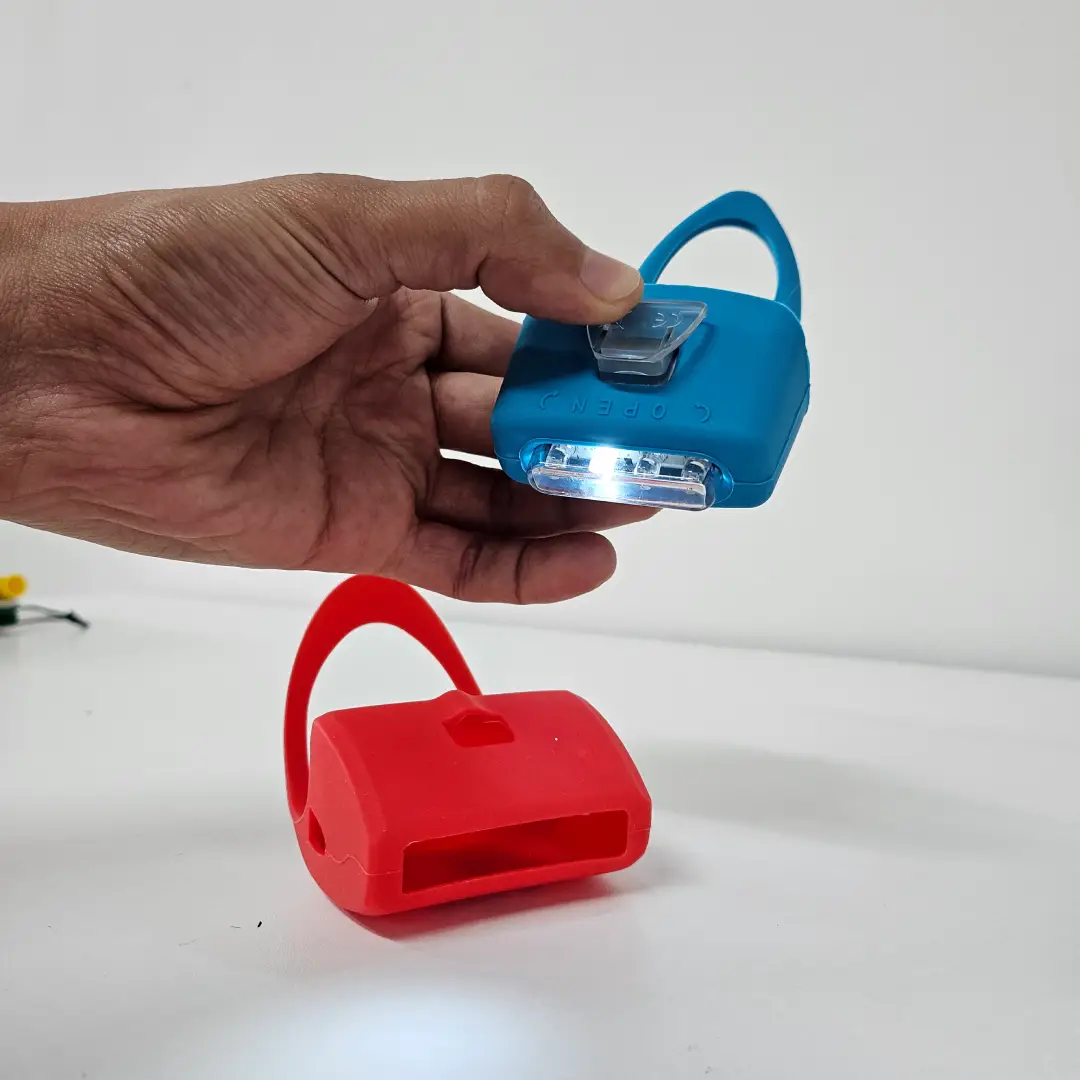

Silicone case overmolded onto LED light electronics assembly for environmental sealing and impact protection.

Solution

Low-temperature cure silicone, compression overmolded below 100°C. Process sequencing used to protect components from heat and pressure. Detail available under NDA.

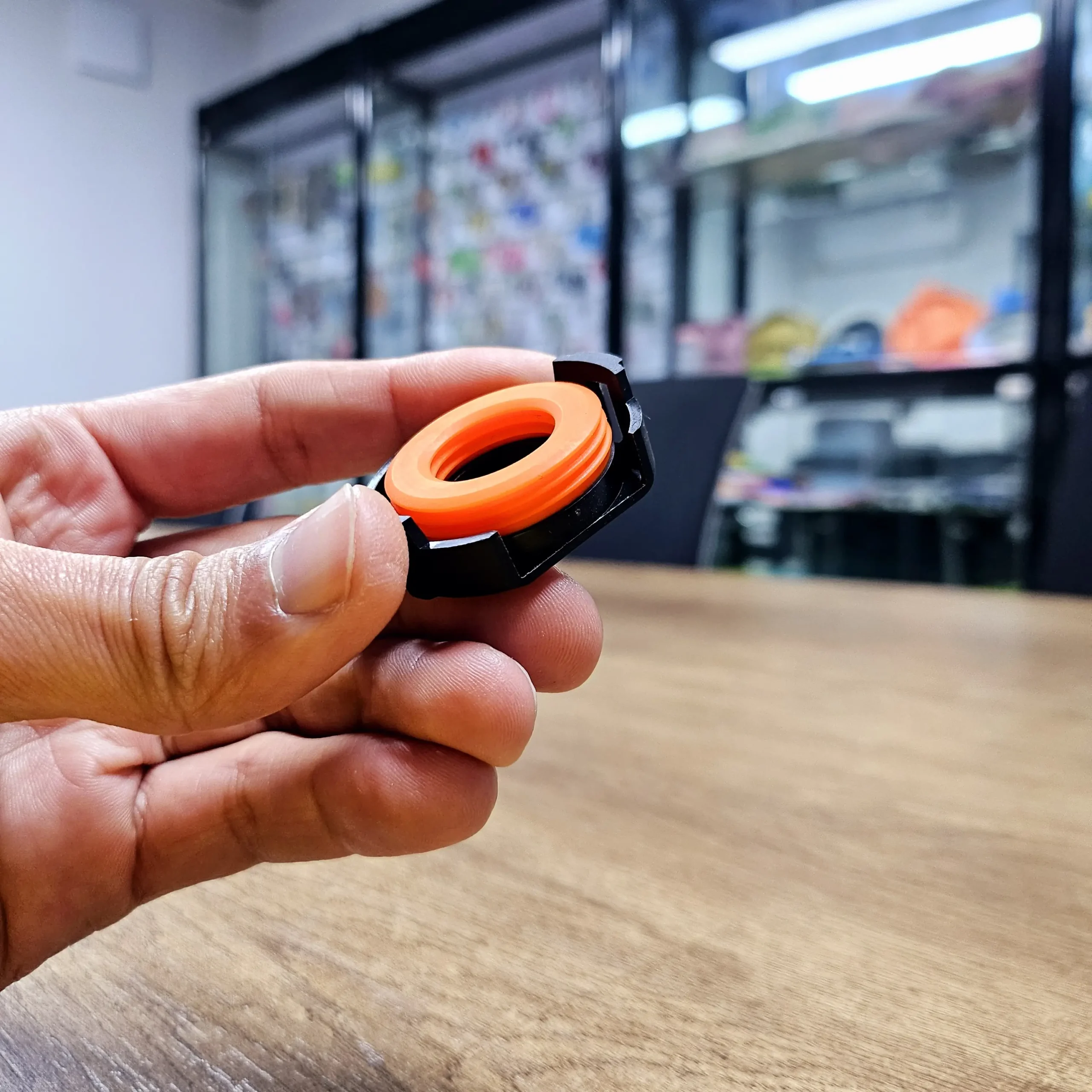

Orange silicone overmolded onto a black plastic threaded nut, creating an integrated fastener and sealing ring in one part.

Solution

Compression molded silicone onto plastic substrate. Substrate thermal limits confirmed in DFM. Sealing ring geometry held to ±0.2mm.

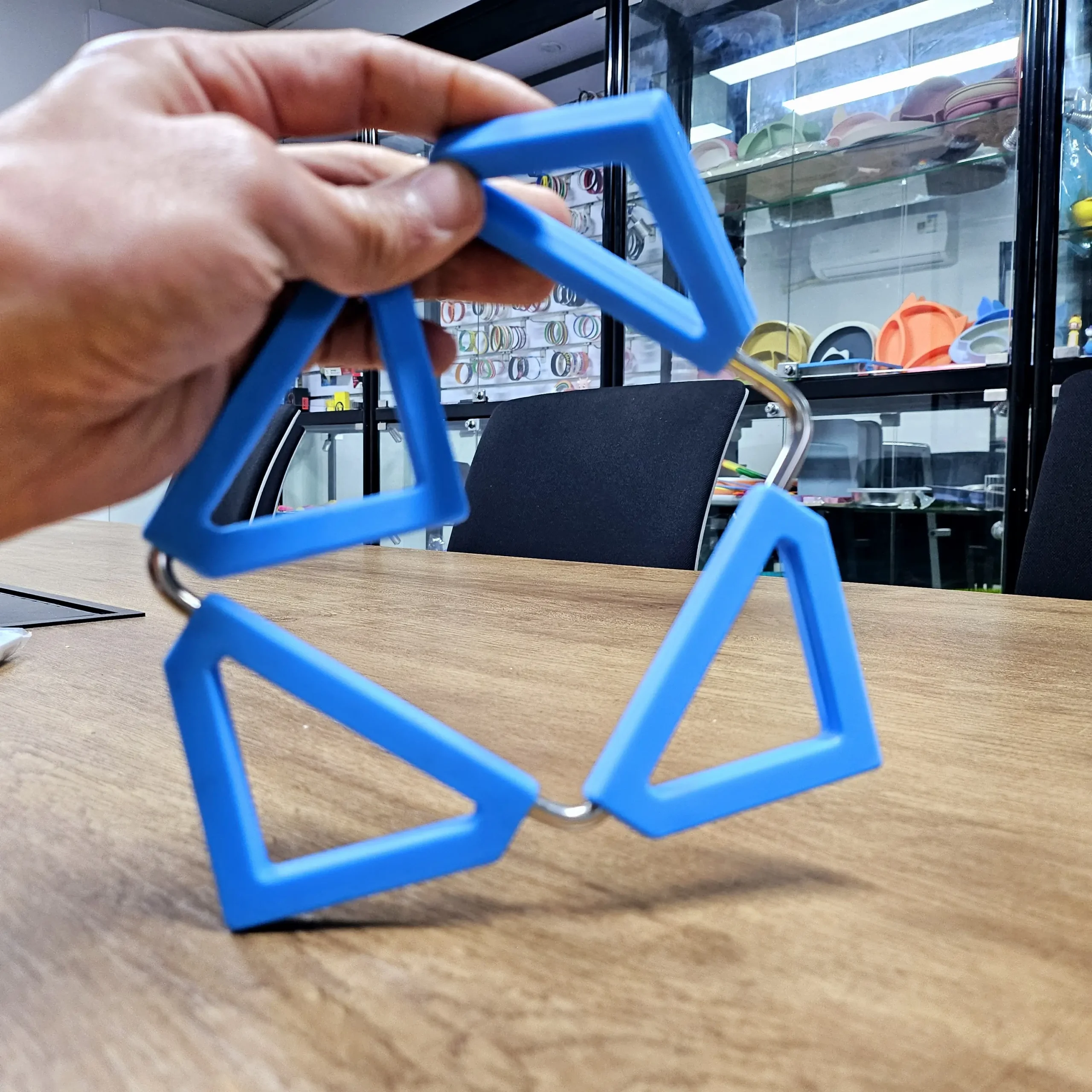

Silicone overmolded onto a stainless steel wire frame for a heat-resistant kitchen trivet full wire coverage, no exposed metal contact.

Solution

Compression molded food-grade silicone. Mechanical interlocking at each wire contact point. Full coverage and bonding consistency confirmed before production release.

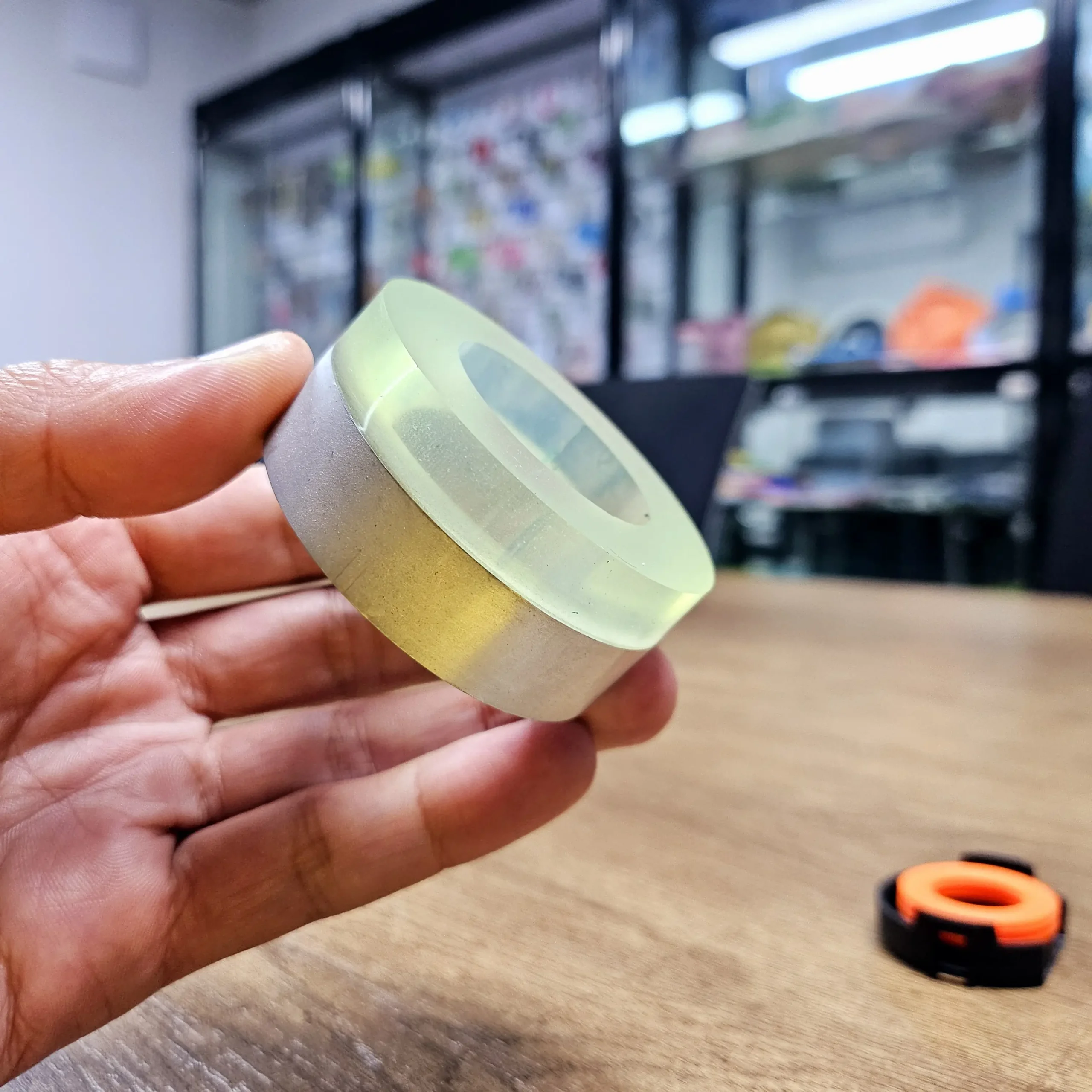

Silicone overmolded onto an aluminium cylindrical bushing for vibration isolation or environmental sealing.

Solution

Compression molded silicone bonded to aluminium with mechanical retention. Shore A and wall thickness confirmed for load requirements during DFM.

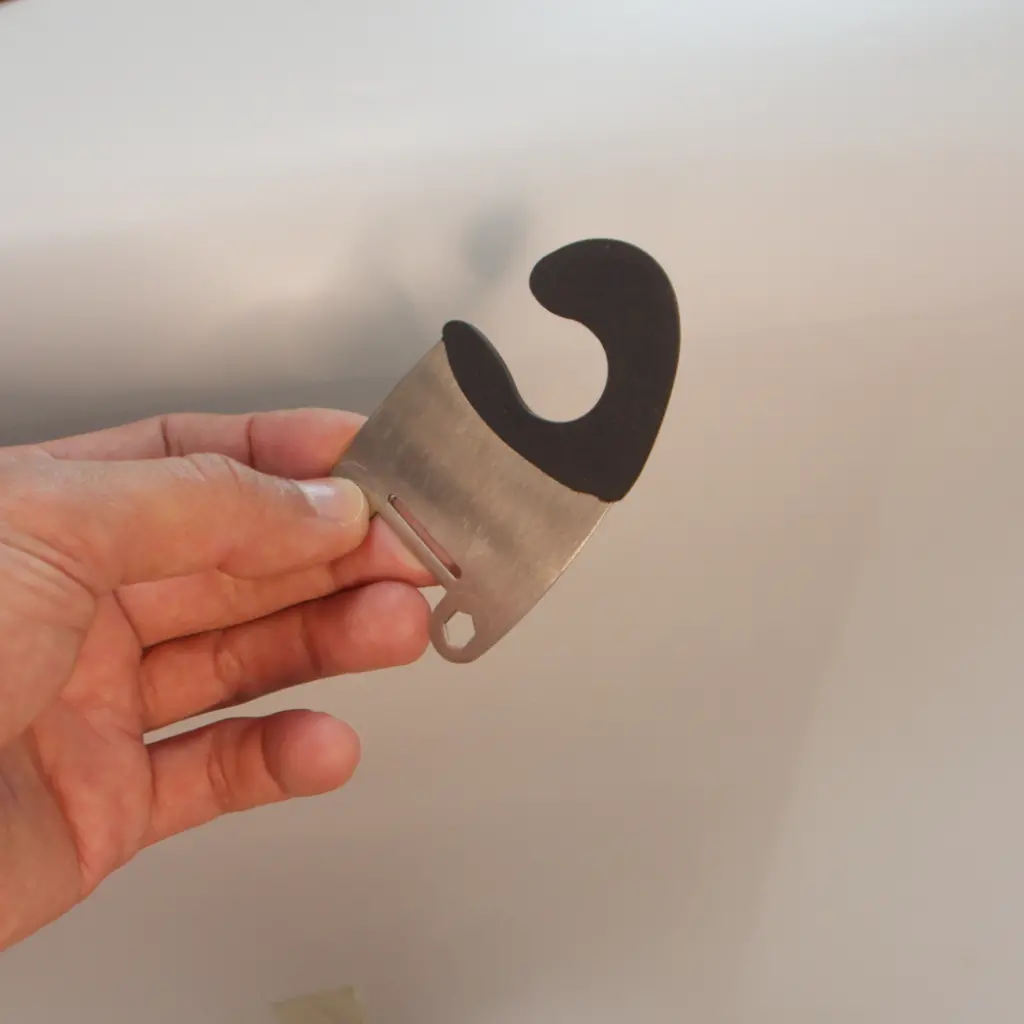

Rubber overmolded onto a stainless steel spatula clip for heat resistance, grip, and surface protection.

Solution

Compression molded rubber onto stainless substrate. Parting line positioned to keep flash off functional grip surfaces. Pull-off resistance tested before production.

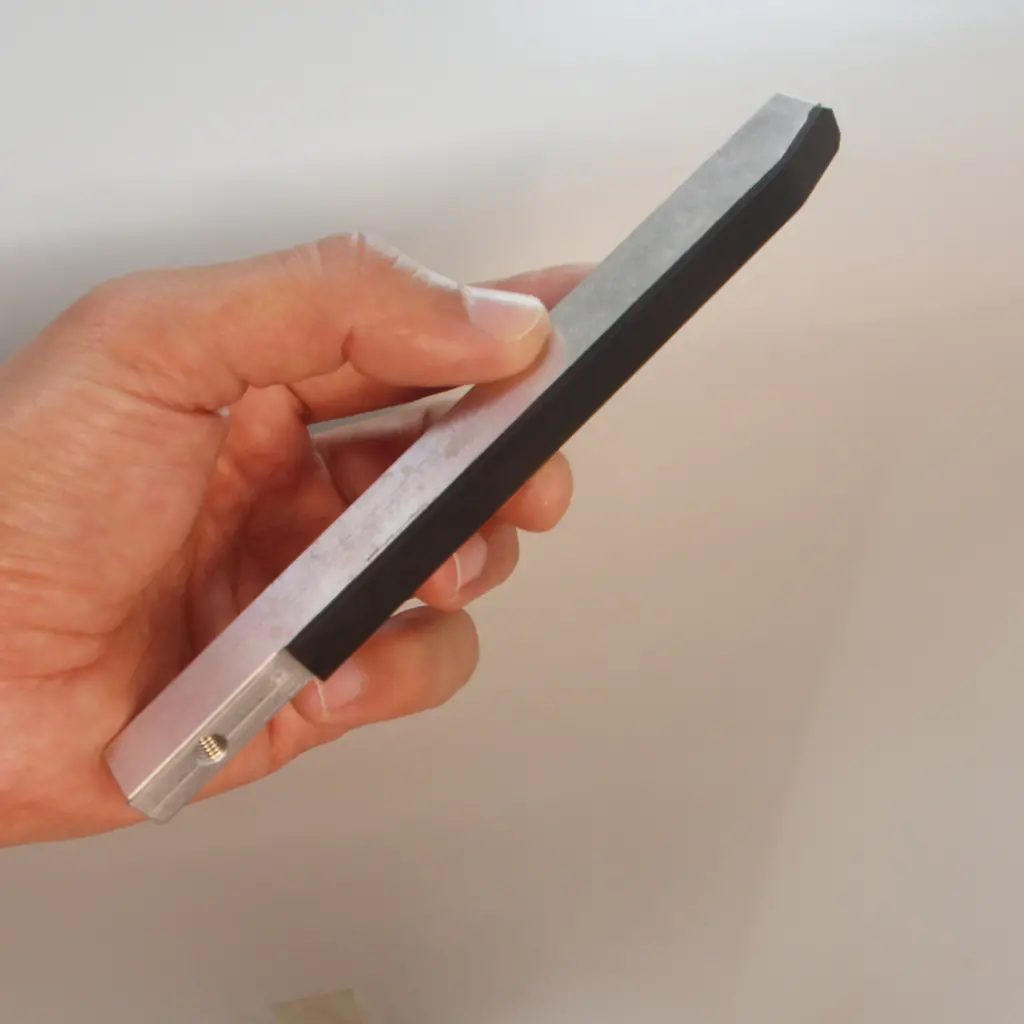

Silicone overmolded along the full edge of an aluminium flat bar for edge sealing and surface protection.

Solution

Compression molded silicone bonded along a continuous aluminium edge. Shutoff geometry confirmed in DFM to prevent flash on mating surfaces.

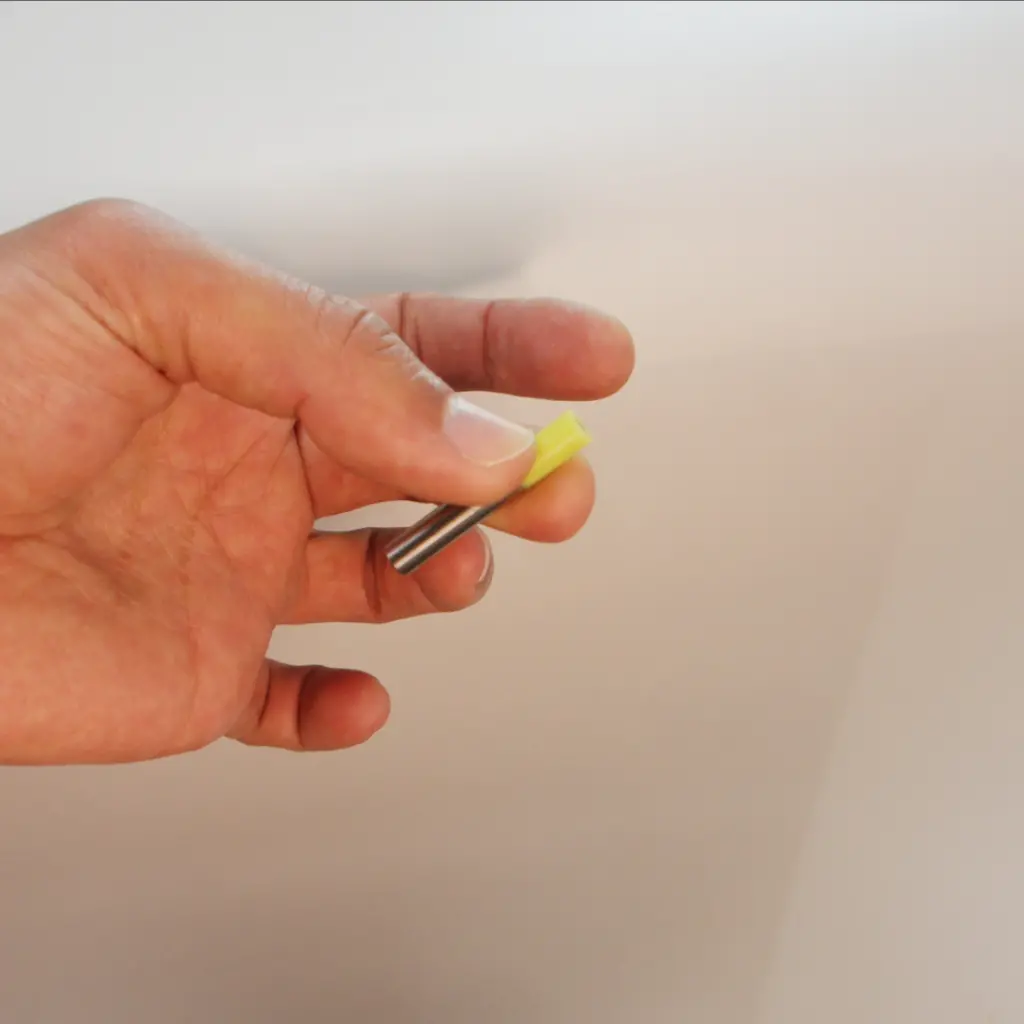

Small silicone tip overmolded onto the end of a metal pin for insulation, protection, or controlled contact.

Solution

Compression molded silicone onto metal pin. Insert location repeatability controlled in mold design. Tip geometry dimensionally checked against drawing per batch.

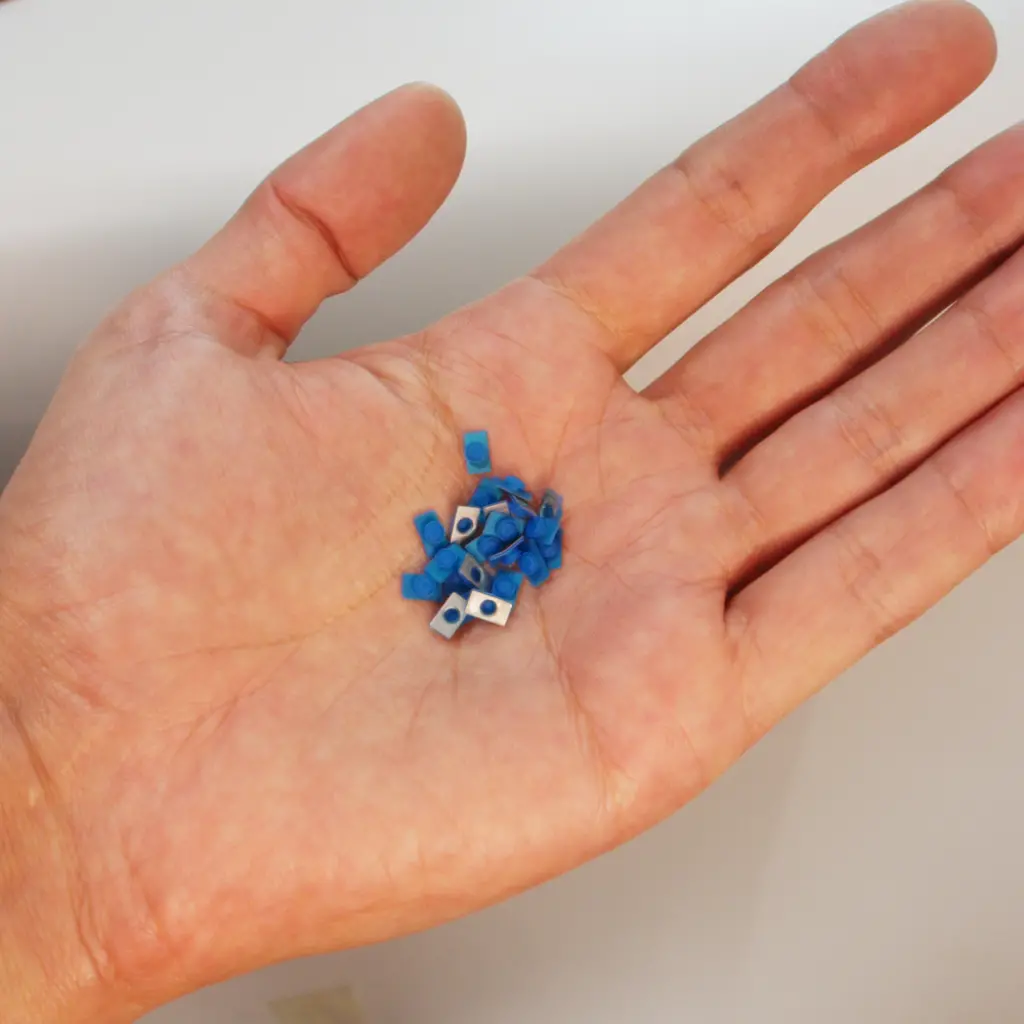

Tiny silicone buttons overmolded onto small metal brackets for switch actuation or tactile interface on electronics.

Solution

Compression molded silicone. Insert positioning fixture used to maintain consistency at high volume. Dimensional check and visual inspection per batch.

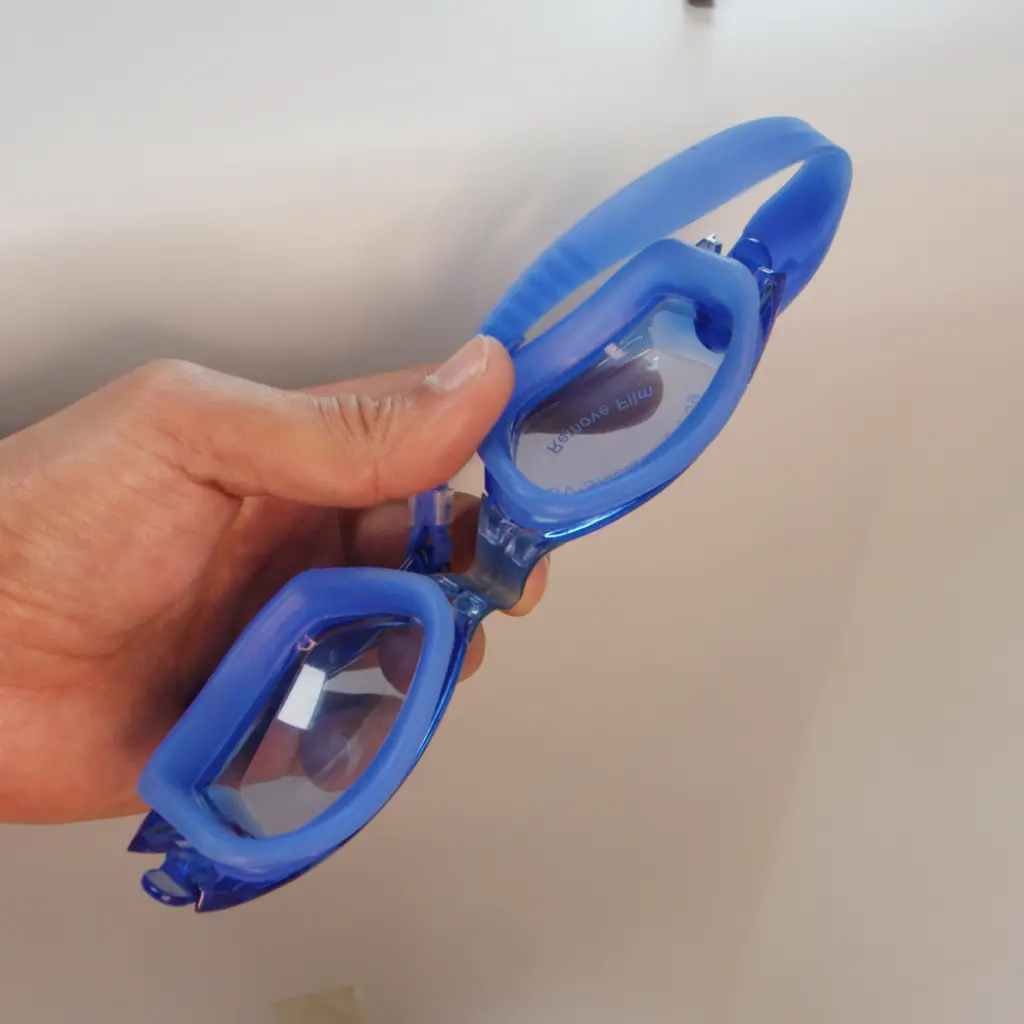

Silicone overmolded onto a plastic swimming goggle frame to form a watertight facial seal and soft contact surface.

Solution

Compression molded silicone onto plastic substrate. Substrate thermal limits confirmed in DFM. Shore A selected for facial contact compliance and sealing performance.
